refactor(FR-2977): unify revision-source prefill in DeploymentAddRevisionModal

[agatha197]

Resolves #7601 (FR-2977)

Summary

Base refactor for DeploymentAddRevisionModal so any caller (e.g. a future "Duplicate as new revision" action — see the stacked PR #7561) can request an id-based revision prefill cleanly, replacing the prop-drilled fragment ref + dual-useEffectEvent state pump that surfaced during review of FR-2957:

• Single source fragment — define DeploymentAddRevisionModal_revisionSource at module scope, spread on both currentRevision and the optional id-based revision(id:) field. Both are read via useFragment, sharing one $data shape so the extracted applyRevisionPrefill(rev) helper accepts either without an unsafe cast.
• Conditional id-based fetch — extend the modal's query with $sourceRevisionId: ID! and $hasSourceRevision: Boolean! variables, plus a top-level revision(id:) @include(if:) @since(version: "25.16.0") field. When no source is requested, the field is excluded from the wire payload and the placeholder id is never evaluated server-side. The revision-history list query no longer needs to spread the prefill fragment on every row — only the id is required.
• Render-as-you-fetch — the modal switched from useLazyLoadQuery to usePreloadedQuery with a deferred query ref, following the same pattern PR refactor(FR-2964): switch route and deployment scheduling history modals to render-as-you-fetch #7575 applied to the scheduling-history modals. The opener (DeploymentDetailPage) drives the modal via useQueryLoader: clicking "Add Revision" calls loadAddRevisionQuery({ deploymentId, sourceRevisionId, hasSourceRevision }, { fetchPolicy: 'store-and-network' }) and then flips the open flag. The page-level <Suspense> boundary around the modal is removed since the query is no longer started inside render.
• queryRef-based source-revision control (no sourceRevisionId prop) — instead of a separate sourceRevisionId prop on the modal, the source id and hasSourceRevision flag ride on the preloaded query's variables. The modal reads queryRef.variables.hasSourceRevision to lock effectiveMode to 'custom' synchronously, and queryRef.variables.sourceRevisionId is the source id the query already resolved. Callers like feat(FR-2957): add duplicate-revision action in revision detail drawer #7561 pass the source through loadQuery variables rather than a separate prop. This consolidates "what data the modal needs" + "what mode the modal opens in" into one decision the opener makes via loadQuery, matching how RouteSchedulingHistoryModal / DeploymentSchedulingHistoryModal consume their preloaded queries.
• Single apply effect — useEffect keyed on (open, sourceRevision), body wrapped in useEffectEvent per project convention, applying the prefill once per source id via an appliedSourceIdRef. The ref resets on close so the next session starts clean.

Notes

• Stacked under feat(FR-2957): add duplicate-revision action in revision detail drawer #7561 (FR-2957), which lands the "Duplicate as new revision" menu/i18n/icon and the parent state that drives loadAddRevisionQuery with the source id. Land bottom-up — this PR first, then feat(FR-2957): add duplicate-revision action in revision detail drawer #7561.
• Intentionally callsite-neutral for the source-revision path: no consumer of DeploymentAddRevisionModal calls loadAddRevisionQuery with hasSourceRevision: true yet. DeploymentDetailPage always passes sourceRevisionId: '' / hasSourceRevision: false for the existing "Add Revision" button.
• API evolved beyond the original issue's "mode + sourceRevisionId as props" sketch — the project standardized on render-as-you-fetch for modals in PR refactor(FR-2964): switch route and deployment scheduling history modals to render-as-you-fetch #7575 (FR-2964), and this PR aligns with that convention. Net effect for callers is the same: the opener decides the mode + source in the same tick, just by constructing the preloaded query's variables instead of passing two separate props.
• Out of scope: presetTransferPrefill / customTransferPrefill (the preset ↔ custom value transfer from FR-2862) — same anti-shape, but translates between two different form shapes and is a structurally different problem.
• Modal UX is unchanged — alert copy, mode segmented control behavior when not locked, Apply button placement, footer all preserved. Pure data-flow refactor.

Test plan

• Add Revision button (sourceless) — opens in persisted mode, no auto-prefill, mode toggle visible, "Load current revision" alert visible.
• Load current revision alert — populates the custom form with the current revision's values (Model Folder, Runtime, image, 4 Core / 8 GiB, Single Node, etc.).
• Toggle Custom ↔ Preset — the existing transfer prefill still moves the shared values across (Custom→Preset transfers Model Folder; Preset→Custom transfers Model Folder back).

Screenshots

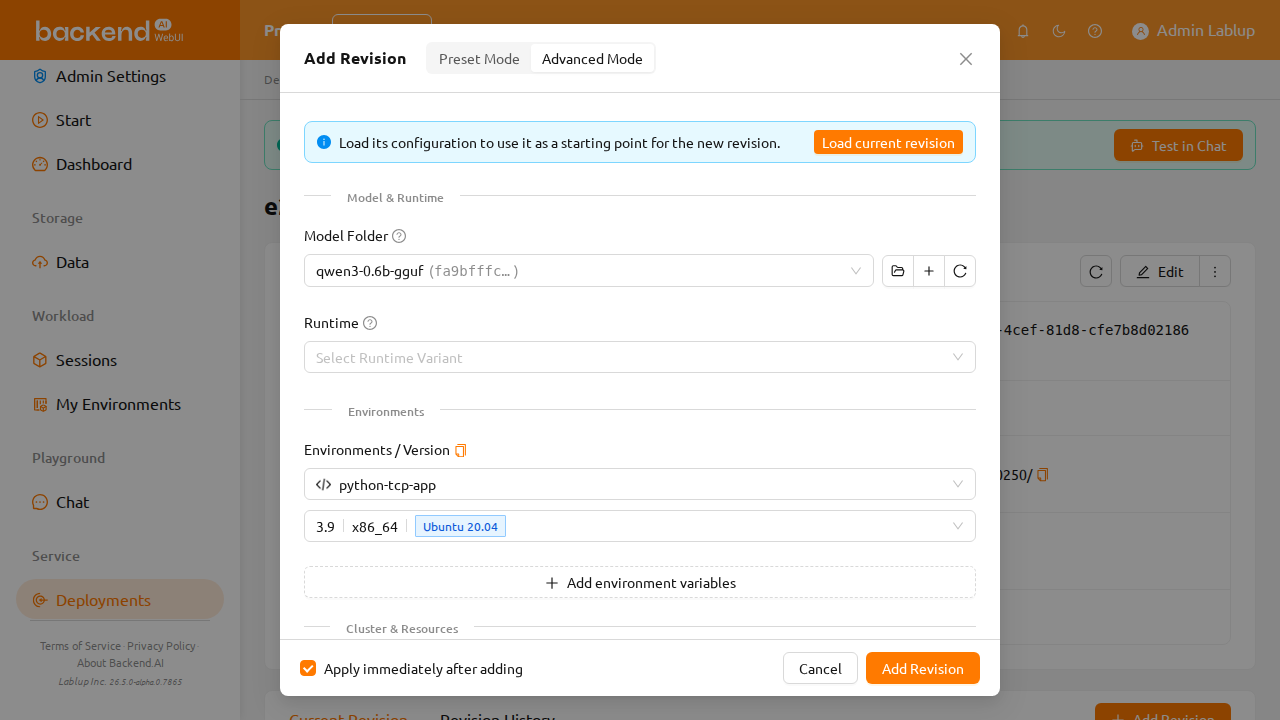

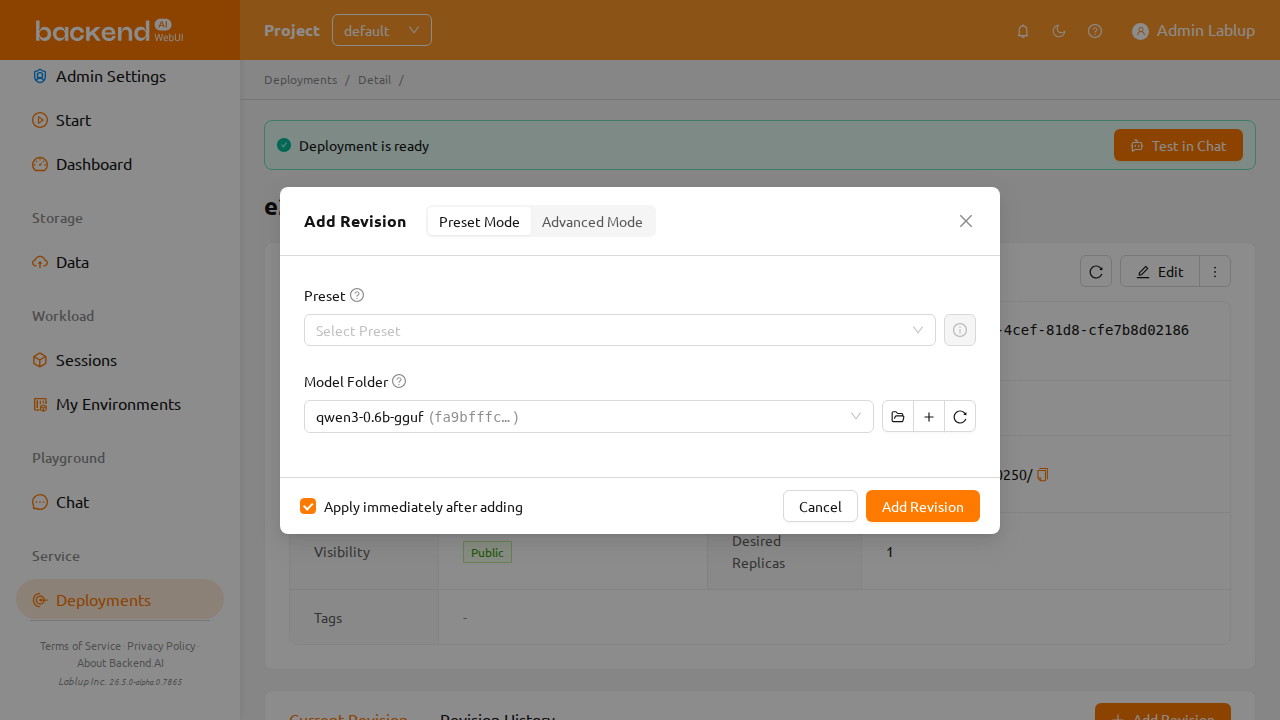

Preset Mode (default)	Advanced Mode — Load current revision alert	After loading current revision

[agatha197]

• feat(FR-2957): add duplicate-revision action in revision detail drawer #7561
• refactor(FR-2977): unify revision-source prefill in DeploymentAddRevisionModal #7602 👈 (View in Graphite)
• main

---

How to use the Graphite Merge Queue

Add either label to this PR to merge it via the merge queue:

• flow:merge-queue - adds this PR to the back of the merge queue
• flow:hotfix - for urgent changes, fast-track this PR to the front of the merge queue

You must have a Graphite account in order to use the merge queue. Sign up using this link.

An organization admin has required the Graphite Merge Queue in this repository.

Please do not merge from GitHub as this will restart CI on PRs being processed by the merge queue.

This stack of pull requests is managed by Graphite. Learn more about stacking.

[github-actions]

Coverage Report for react-coverage (./react)

Status	Category	Percentage	Covered / Total
🔵	Lines	6.52%	1800 / 27566
🔵	Statements	5.34%	1995 / 37291
🔵	Functions	5.27%	297 / 5626
🔵	Branches	3.72%	1300 / 34863

File Coverage

File	Stmts	Branches	Functions	Lines	Uncovered Lines
Changed Files
react/src/components/DeploymentAddRevisionModal.tsx	0%	0%	0%	0%	140-1851
react/src/components/DeploymentConfigurationSection.tsx	0%	0%	0%	0%	81-392
react/src/pages/DeploymentDetailPage.tsx	0%	0%	0%	0%	53-221

Generated in workflow #1210 for commit 3ba8330 by the Vitest Coverage Report Action

[Copilot]

Pull request overview

Refactors DeploymentAddRevisionModal to a render-as-you-fetch model with a single shared DeploymentAddRevisionModal_revisionSource fragment. The modal now consumes a PreloadedQuery whose variables (sourceRevisionId, hasSourceRevision) can request an id-based revision lookup via revision(id:) @include @since("25.16.0"). Both currentRevision and the optional source revision are read through the same fragment, and a single keyed effect applies the prefill — replacing the previous useLazyLoadQuery + duplicate-state pump pattern and laying the groundwork for the stacked "Duplicate as new revision" PR (#7561).

Changes:

• Introduce DeploymentAddRevisionModal_revisionSource fragment + exported DeploymentAddRevisionQuery; add $sourceRevisionId/$hasSourceRevision variables and a conditional revision(id:) top-level field.
• Switch the modal from useLazyLoadQuery to usePreloadedQuery+useDeferredValue, derive effectiveMode='custom' when the queryRef carries hasSourceRevision, and reduce prefill to one keyed useEffect/useEffectEvent using appliedSourceIdRef.
• Move query kickoff to DeploymentDetailPage via useQueryLoader, drop the local <Suspense> boundary, and gate modal render on addRevisionQueryRef != null.

Reviewed changes

Copilot reviewed 3 out of 5 changed files in this pull request and generated 1 comment.

Show a summary per file

File	Description
react/src/pages/DeploymentDetailPage.tsx	Replaces useToggle with useState+useQueryLoader to preload the modal query on click; removes the local Suspense boundary.
react/src/components/DeploymentConfigurationSection.tsx	Updates the Add Revision button comment to reflect the render-as-you-fetch flow.
react/src/components/DeploymentAddRevisionModal.tsx	Adds the shared revision-source fragment, exported preloaded query, single apply-prefill effect, and locks mode to Custom when queryRef.variables.hasSourceRevision is true.
react/src/generated/DeploymentAddRevisionModalQuery.graphql.ts	Regenerated query artifact for the new variables and conditional revision field.
react/src/generated/DeploymentAddRevisionModal_revisionSource.graphql.ts	New generated fragment artifact for the shared revision-source selection.

Files not reviewed (2)

• react/src/generated/DeploymentAddRevisionModalQuery.graphql.ts: Language not supported
• react/src/generated/DeploymentAddRevisionModal_revisionSource.graphql.ts: Language not supported

[nowgnuesLee]

Please resolve the merge conflicts.

[nowgnuesLee]

[Re: lines +1381 to +1394]

                <Suspense fallback={<BAISelect loading />}>
                  <Form.Item
                    name="modelFolderId"
                    noStyle
                    rules={[{ required: true }]}
                  >
                    <BAIVFolderSelect
                      ref={presetVFolderSelectRef}
                      currentProjectId={currentProjectId ?? undefined}
                      disabled={!currentProjectId}
                      excludeDeleted
                      filter='usage_mode == "model"'
                      style={{ flex: 1 }}
                    />
                  </Form.Item>
                </Suspense>

See this comment inline on Graphite.
